文章简介:这个页面用到了html5的标签元素和css3的线性渐变、圆角、阴影效果,以及当前流行的parallax视差特效和一些其他结合jquery的动画,在chrome,Safari,opera,firefox下都可以完美显示,如果你还使用IE浏览器,我想效果支持的并不是那么完美,不过尽管这样,我还是对IE6,7,8 |
这个页面用到了html5的标签元素和css3的线性渐变、圆角、阴影效果,以及当前流行的parallax视差特效和一些其他结合jquery的动画,在chrome,Safari,opera,firefox下都可以完美显示,如果你还使用IE浏览器,我想效果支持的并不是那么完美,不过尽管这样,我还是对IE6,7,8做了兼容性处理。
View Demo ,
Download

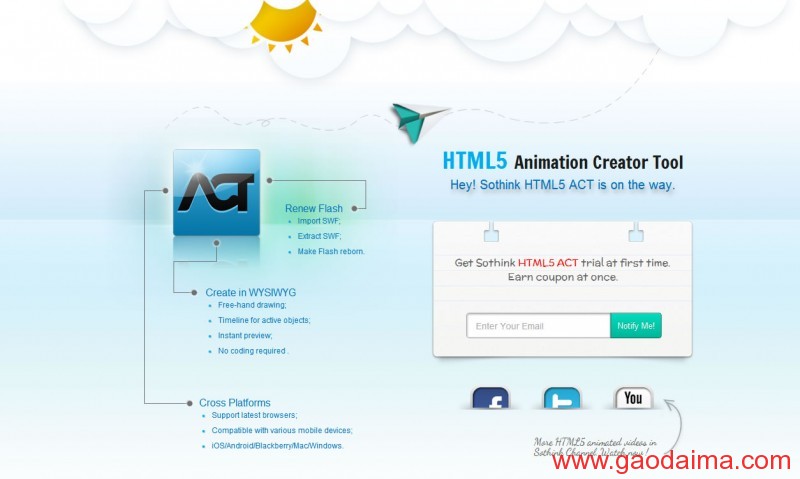

下面我们就来一步一步的实现这个页面,首先你要准备好设计师设计的PSD文件,并进行精确的切图,我们先来看这个comingsoon页面有哪些文件:
一个index.htm文件
css:
reset.css(格式化样式表http://meyerweb.com/eric/tools/css/reset/)
style.css (网站主要样式表文件)
js:
jquery.jparallax.js支持该页面的视差效果的插件,需要与jquery1.2.6相配套使用,如需更多了解请前往http://webdev.stephband.info/parallax.html 。
jquery.backgroundpos.js jquery的一个背景位置转换插件,用来支持该页面社会分享图标的动画效果。
CheckBrowser.js判断浏览器版本以及客户端设备的文件,用来调试兼容性。
Html5Act-Install.js 加载或启动动画的基础的js文件
image文件夹:包含所有的图片
字体:
我们的设计师设计了手绘字体,为了能让没有安装该字体的用户看到,我们引入了谷歌的字体库并在CSS样式中调用了它。
<link href=’http://fonts.googleapis.com/css?family=Francois+OneMcLarenRyeDancing+Script’ rel=’stylesheet’ type=’text/css’>
头部
我们使用了html5标签<header></header>,对于不支持html5标签的IE浏览器,我们这里通过调用谷歌的html5.js使其支持html5的标签,另外需要在CSS中声明这些元素块状显示,reset.css文件里面已经声明。在index.htm文件<head></head>部分你可以看到这部分代码:
<!–IE fix for HTML5 tags–>
< !–[if lt IE 9]>
< script src=”http://html5shiv.googlecode.com/svn/trunk/html5.js”>
< /script>
< ![endif]–>
我们来看代码部分:
<header><img src=http://www.webjx.com/css/”image/logo.png” alt=”sothink Html5-Act”/></header>
2.视差背景部分
这部分内容是用绝对定位脱离了文档流的,我们来看看结构和CSS代码:
XHTML结构:
1 2 3 | </pre> <div id="”backgrounds”"></div> <pre> |
CSS代码:
1 2 3 4 5 6 7 | #parallax_back { position : absolute ; height : 745px ; overflow : hidden ; left : 0 ; right : 0 ; z-index : 1 ; top : 0 ;}
#parallax { position : absolute ; width : 2500px ; height : 745px ; overflow-x: hidden ; left : 50% ; margin : 0 0 0 -1250px ; z-index : 2 ; top : 0 ;}
#parallax_back #bg-aircraft { width : 2200px ; height : 745px ; position : absolute ; background : url (../image/bg-aircraft.png) no-repeat center top ; left : 50% ; margin : 0 0 0 -1100px ;}
#parallax #bg-sun { width : 2000px ; height : 745px ; position : absolute ; background : url (../image/bg-sun.png) no-repeat center top ; left : 50% ; margin : 0 0 0 -1000px ;} #parallax_back #bg-couldbelow { width : 2400px ; height : 745px ; position : absolute ; background : url (../image/bg-couldbelow.png) no-repeat center top ; left : 50% ; margin : 0 0 0 -1200px ;}
#parallax #bg-couldabove { width : 2400px ; height : 745px ; position : absolute ; background : url (../image/bg-couldabove.png) no-repeat center top ; left : 50% ; margin : 0 0 0 -1200px ;} |
(我们设置背景层和显示层的z-index属性,并在xhtml结构中按顺序放置相关层来达到堆叠的顺序。)
JS:
1 2 | $(‘ #parallax_back’).jparallax({triggerExposesEdges: true}, {xtravel:0.05, ytravel:0.05}, {xtravel:0.1, ytravel:0.1}, {xtravel:0.15, ytravel:0.15}); $(‘ #parallax’).jparallax({triggerExposesEdges: true}, {xtravel:0.1, ytravel:0.1}, {xtravel:0.15, ytravel:0.15}, {xtravel:0.2, ytravel:0.2}); |
(我们用 jquery.jparallax.js插件结合jquery1.2.6版本来实现这种动画效果,并给背景层和显示层分别不同的位移参数,这是当前比较流行的效果,遗憾的是,IE浏览器对其支持性很差。)
3.主体部分
这个部分包含了即将发布的产品logo,产品的特性,以及邮件收集表单和社交分享几个部分。在这里,我们主要讲其中的2个动画效果和一个按钮三种状态下用CSS3修饰的风格。
A:其中悬浮在LOGO上面的渐显星星用到了fadeIn和fadeOut函数,并结合opacity和filter使其呈现。我们来看代码:
CSS:
1 | #left-box #star{ width : 85px ; height : 85px ; position : absolute ; left : 128px ; top : 40px ; background : url (../image/star.png) no-repeat } |
(首先我们绝对定位它到目标位置)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 | var left = document.getElementById(‘star’);
var steps = 300; /* set the opacity of the element (between 0.0 and 1.0) */
function setOpacity(level) {
left.style.opacity = level;
left.style.MozOpacity = level;
left.style.KhtmlOpacity = level;
var ua = checkB();
if ( ua[ "isIE6" ]){
left.style.filter = “alpha(opacity=” + (level * 100) + “);”;
}
}
function fadeIn(){
for (i = 0; i setTimeout(“setOpacity(” + i + “)”, i * 3000); }
setTimeout(“fadeOut()”, 2800);
}
function fadeOut() {
for (i = 0; i setTimeout(“setOpacity(” + (1 – i) + “)”, i * 3000);
}
setTimeout(“fadeIn()”, 2800);
}
fadeIn(); |
(由于7,8浏览器对PNG滤镜效果支持不乐观,我们通过调用checkB()函数判断客户端浏览器并指定了一些高级浏览器拥有该效果,而放弃了IE7,IE8以下的浏览器。这里调用了jquery的fadeIn和fadeOut效果用来达到动画效果)
B:再来看社交分享内容的动画,当鼠标指向隐藏一半的图像,会全部露出来。这里其实用到的是一个jquery的背景位置变换的插件jquery.background.js,再通过设置mouseover和mouseout两种状态下图片所处背景的不同位置达到动画效果,当然这个动画的持续时间可以通过duration参数设置。然后我们来看代码
CSS:
1 2 3 4 | #sharebox .social_list li a{ width : 64px ; height : 64px ; display : block ; margin : 0 auto 4px ; }
#sharebox .social_list .facebook a { background : url (../image/f 1 .png) no-repeat left -28px ;}
#sharebox .social_list .twitter a { background : url (../image/t 1 .png) no-repeat left -28px ;}
#sharebox .social_list .youtube a { background : url (../image/y 1 .png) no-repeat left -28px ;} |
(在这里,我们通过给a元素转换成块状元素,然后设置一个负值,使其露出一半的图像)
JS:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 | $(“.social_list li a”).css({“background-position” : “0px 28px”})
.mouseover( function () {
$( this ).stop().animate({
‘backgroundPosition’ : “0px 0px”
},
{duration:300})
})
.mouseout( function () {
$( this ).stop().animate({
‘backgroundPosition’ : “0px 28px”
},
{duration:200})
}); }); |
(设置mouseover和mouseout两种状态下的背景位置差值,以达到动画效果,持续时间可以自己设置。)
xhtml:
1 2 | </pre> <em></em> |
C:表单部分:
这个地方我们对提交的按钮用CSS3进行了美化,线性渐变、阴影、圆角效果,我们对其设置了默认,hover和active三种状态下的风格。代码如下:
1 2 3 4 | #brand .submit_button { font-family : Arial , Helvetica , sans-serif ; float : left ; width : 6em ; border : 1px solid #006656 ;box-shadow: 0px 1px 0px 0px rgba( 255 , 255 , 255 , 0.53 ) inset ;border-radius: 0em 0.3em 0.3em 0em ; background : -webkit-linear-gradient( bottom , #02B69A , #01DDBE ); background : -moz-linear-gradient( bottom , #02B69A , #01DDBE ); background : -o-linear-gradient( bottom , #02B69A , #01DDBE ); background : -ms-linear-gradient( bottom , #02B69A , #01DDBE ); cursor : pointer ; height : 3em ; color : white ; text-shadow : 0 -1px 0 rgba( 0 , 0 , 0 , 0.25 );filter: progid:DXImageTransform.Microsoft.gradient( startColorstr=’ #1e5799 ′, endColorstr=’ #007db9 e 8 ′,GradientType= 0 );} #brand .submit_button:hover { background-image : -webkit-gradient(linear, left bottom , left top , from(rgba( 255 , 255 , 255 ,. 1 )), to(rgba( 0 , 0 , 0 ,. 1 ))); background-image : -webkit-linear-gradient( bottom , #01DDBE , #02B69A ); background-image : -moz-linear-gradient( bottom , #01DDBE , #02B69A ); background-image : -ms-linear-gradient( bottom , #01DDBE , #02B69A ); background-image : -o-linear-gradient( bottom , #01DDBE , #02B69A ); background-image : linear-gradient( bottom , #01DDBE , #02B69A );-moz-box-shadow: 0 1px 2px 0 rgba( 0 , 0 , 0 ,. 15 ) inset ;-webkit-box-shadow: 0 1px 2px 0 rgba( 0 , 0 , 0 ,. 15 ) inset ;box-shadow: 0 1px 2px 0 rgba( 0 , 0 , 0 ,. 15 ) inset ;filter:progid:DXImageTransform.Microsoft.gradient( startColorstr= "#01DDBE" ,endColorstr= "#02B69A" ,GradientType= 0 );}
#brand .submit_button:active { -moz-box-shadow: 0 1px 2px 0 rgba( 0 , 0 , 0 ,. 15 ) inset , 0 3px 13px 3px rgba( 0 , 0 , 0 ,. 3 ) inset ; -webkit-box-shadow: 0 1px 2px 0 rgba( 0 , 0 , 0 ,. 15 ) inset , 0 3px 13px 3px rgba( 0 , 0 , 0 ,. 3 ) inset ; box-shadow: 0 1px 2px 0 rgba( 0 , 0 , 0 ,. 15 ) inset , 0 3px 13px 3px rgba( 0 , 0 , 0 ,. 3 ) inset ; color : #ddd ;} |
最后,我们为了让这个页面在支持性比较差的IE浏览器中最大化的展现我们页面的效果,我们对其做了一些兼容措施,虽然使用IE6的用户越来越少,我们还是针对IE6做了一些兼容。
1.对于不支持CSS3中线性渐变的IE789浏览器我们这里通过设置ie的属性filter使其呈现效果。
1 | filter:progid:DXImageTransform.Microsoft.gradient( startColorstr= "#01DDBE" ,endColorstr= "#02B69A" ,GradientType= 0 ); |
2.我们在head部分通过if条件语句引用了一个ie.css,
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 | /*IE6下面不支持fliter的渐变处理*/ #brand .submit_button { background : #02B69A ; color : #FFF } /*for ie6*/ /*IE6,7,8下面对其视差效果层显示较差的处理*/ #bac kgrounds {
_display : none ; /*for ie6*/
* display : none ; /*for ie7*/
position : absolute ;
top : 74px ;
width : 900px ; } /*This is because on IE 7 and 8 the text in the input field doesn’t align (vertically) in the center.*/ .email_button {
line-height : 40px ; } |
3.对于不支持ie6下png透明我们在head头部使用if条件语句引用了js文件
<!–[if IE 6]>
< script src=”js/DD_belatedPNG.js”>
< /script>
< script>
DD_belatedPNG.fix(‘.png_bg’);
< /script>
< ![endif]–>
我们通过给PNG图片和以PNG图片为背景的层增加png_bg类,已达到透明目的。
//Png transparent background in ie6 var ua = checkB(); if (ua["isIE6"]) { $("img,#left-box,#star,#brand,#sharebox,#sharebox ul li,#sharebox ul li a").addClass("png_bg"); }
欢迎大家阅读《html5+css3网页制作实例:制作comingsoo…_css》,跪求各位点评,若觉得好的话请收藏本文,by 搞代码
