林炳文Evankaka原创作品。转载请注明出处http://blog.csdn.net/evankaka

        摘要：本文主要讲了如何使用Maven来搭建Spring+Mybatis+SpringMVC+MySql的搭建实例，文章写得很详细，有代码有图片，最后也带有运行的效果。

本文工程免费下载

一、准备工作

1. 首先创建一个表：

CREATE TABLE `t_user` (   `USER_ID` int(11) NOT NULL AUTO_INCREMENT,   `USER_NAME` char(30) NOT NULL,   `USER_PASSWORD` char(10) NOT NULL,   `USER_EMAIL` char(30) NOT NULL,   PRIMARY KEY (`USER_ID`),   KEY `IDX_NAME` (`USER_NAME`) ) ENGINE=InnoDB AUTO_INCREMENT=11 DEFAULT CHARSET=utf8

随便插入一些数据：

INSERT INTO t_user (USER_ID, USER_NAME, USER_PASSWORD, USER_EMAIL) VALUES (1, '林炳文', '1234567@', '[email protected]'); INSERT INTO t_user (USER_ID, USER_NAME, USER_PASSWORD, USER_EMAIL) VALUES (2, 'evan', '123', '[email protected]'); INSERT INTO t_user (USER_ID, USER_NAME, USER_PASSWORD, USER_EMAIL) VALUES (3, 'kaka', 'cadg', '[email protected]'); INSERT INTO t_user (USER_ID, USER_NAME, USER_PASSWORD, USER_EMAIL) VALUES (4, 'simle', 'cscs', '[email protected]'); INSERT INTO t_user (USER_ID, USER_NAME, USER_PASSWORD, USER_EMAIL) VALUES (5, 'arthur', 'csas', '[email protected]'); INSERT INTO t_user (USER_ID, USER_NAME, USER_PASSWORD, USER_EMAIL) VALUES (6, '小德', 'yuh78', '[email protected]'); INSERT INTO t_user (USER_ID, USER_NAME, USER_PASSWORD, USER_EMAIL) VALUES (7, '小小', 'cvff', '[email protected]'); INSERT INTO t_user (USER_ID, USER_NAME, USER_PASSWORD, USER_EMAIL) VALUES (8, '林林之家', 'gvv', '[email protected]'); INSERT INTO t_user (USER_ID, USER_NAME, USER_PASSWORD, USER_EMAIL) VALUES (9, '林炳文Evankaka', 'dfsc', '[email protected]'); INSERT INTO t_user (USER_ID, USER_NAME, USER_PASSWORD, USER_EMAIL) VALUES (10, 'apple', 'uih6', '[email protected]');

二、工程创建

1、Maven工程创建

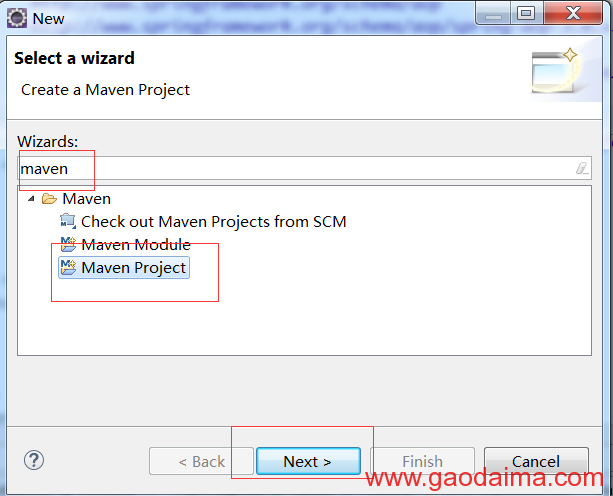

（1）新建

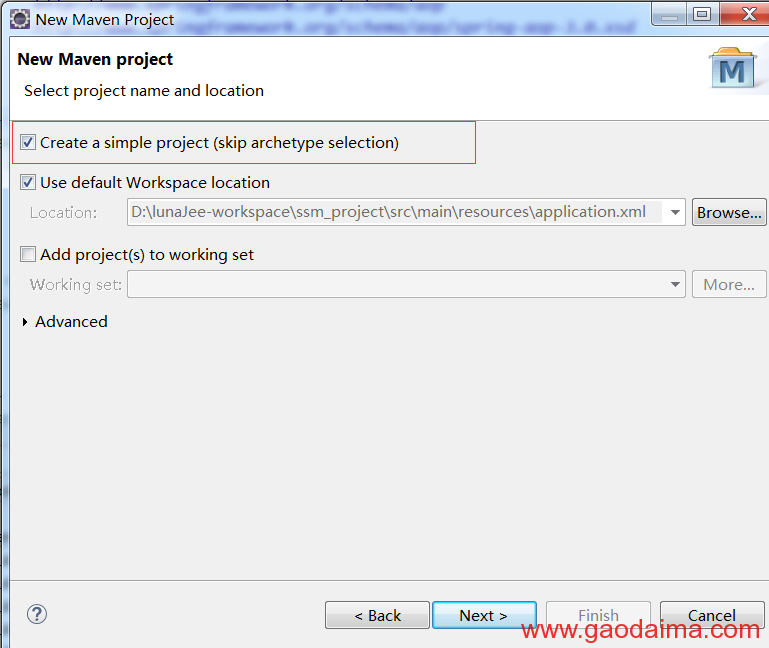

（2）选择快速框架

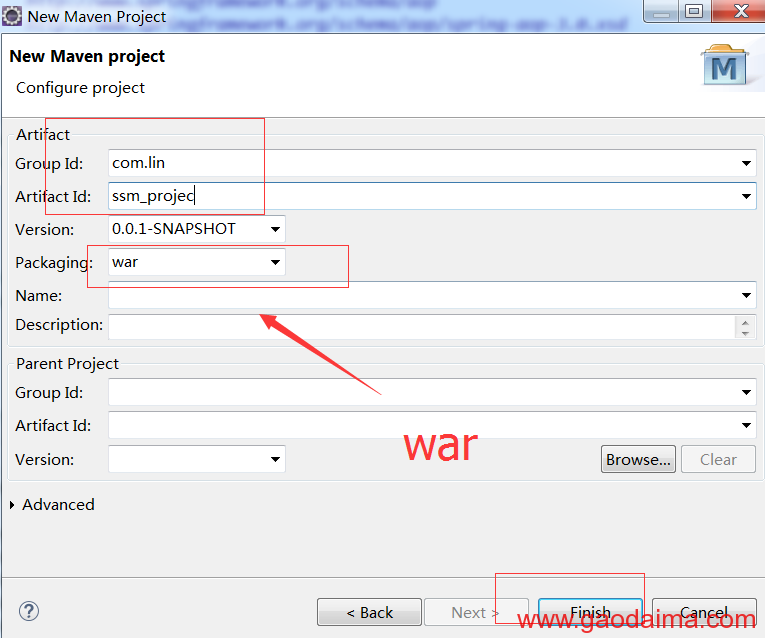

（3）输出项目名，包，记得选war(表示web项目，以后可以spingMVC连起来用)

（4）创建好之后

目录如下：

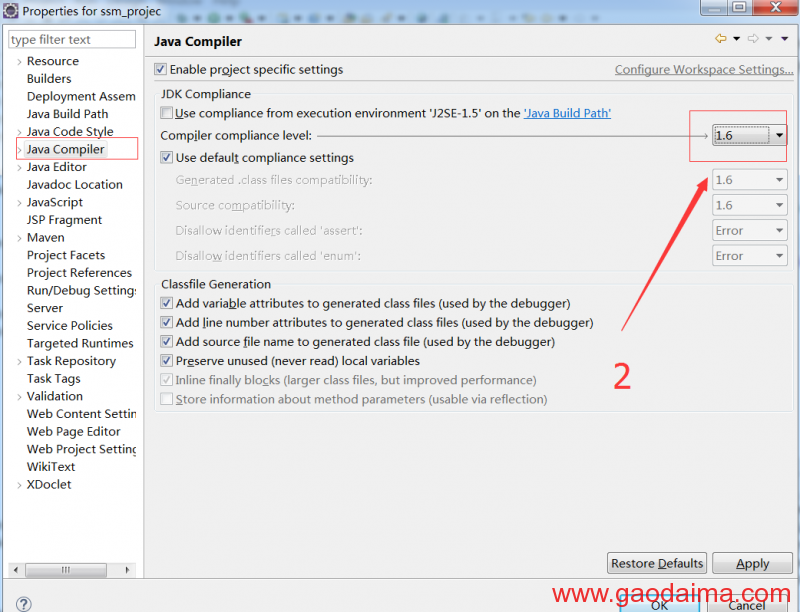

（5）检查下

这三个地方JDK的版本一定要一样！！！！

三、sping+mybatis配置

1、整个工程目录如下：

2、POM文件

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">  <modelVersion>4.0.0</modelVersion>  <groupId>com.lin</groupId>  <artifactId>ssm_project</artifactId>  <version>0.0.1-SNAPSHOT</version>  <packaging>war</packaging>  <properties>   <!-- spring版本号 -->   <spring.version>3.2.8.RELEASE</spring.version>   <!-- log4j日志文件管理包版本 -->   <slf4j.version>1.6.6</slf4j.version>   <log4j.version>1.2.12</log4j.version>   <!-- junit版本号 -->   <junit.version>4.10</junit.version>   <!-- mybatis版本号 -->   <mybatis.version>3.2.1</mybatis.version>  </properties>   <dependencies>   <!-- 添加Spring依赖 -->   <dependency>    <groupId>org.springframework</groupId>    <artifactId>spring-core</artifactId>    <version>${spring.version}</version>   </dependency>   <dependency>    <groupId>org.springframework</groupId>    <artifactId>spring-webmvc</artifactId>    <version>${spring.version}</version>   </dependency>   <dependency>    <groupId>org.springframework</groupId>    <artifactId>spring-context</artifactId>    <version>${spring.version}</version>   </dependency>   <dependency>    <groupId>org.springframework</groupId>    <artifactId>spring-context-support</artifactId>    <version>${spring.version}</version>   </dependency>   <dependency>    <groupId>org.springframework</groupId>    <artifactId>spring-aop</artifactId>    <version>${spring.version}</version>   </dependency>   <dependency>    <groupId>org.springframework</groupId>    <artifactId>spring-aspects</artifactId>    <version>${spring.version}</version>   </dependency>   <dependency>    <groupId>org.springframework</groupId>    <artifactId>spring-tx</artifactId>    <version>${spring.version}</version>   </dependency>   <dependency>    <groupId>org.springframework</groupId>    <artifactId>spring-jdbc</artifactId>    <version>${spring.version}</version>   </dependency>   <dependency>    <groupId>org.springframework</groupId>    <artifactId>spring-web</artifactId>    <version>${spring.version}</version>   </dependency>    <!--单元测试依赖 -->   <dependency>    <groupId>junit</groupId>    <artifactId>junit</artifactId>    <version>${junit.version}</version>    <scope>test</scope>   </dependency>    <!-- 日志文件管理包 -->   <!-- log start -->   <dependency>    <groupId>log4j</groupId>    <artifactId>log4j</artifactId>    <version>${log4j.version}</version>   </dependency>   <dependency>    <groupId>org.slf4j</groupId>    <artifactId>slf4j-api</artifactId>    <version>${slf4j.version}</version>   </dependency>   <dependency>    <groupId>org.slf4j</groupId>    <artifactId>slf4j-log4j12</artifactId>    <version>${slf4j.version}</version>   </dependency>   <!-- log end -->    <!--spring单元测试依赖 -->   <dependency>    <groupId>org.springframework</groupId>    <artifactId>spring-test</artifactId>    <version>${spring.version}</version>    <scope>test</scope>   </dependency>    <!--mybatis依赖 -->   <dependency>    <groupId>org.mybatis</groupId>    <artifactId>mybatis</artifactId>    <version>${mybatis.version}</version>   </dependency>    <!-- mybatis/spring包 -->   <dependency>    <groupId>org.mybatis</groupId>    <artifactId>mybatis-spring</artifactId>    <version>1.2.0</version>   </dependency>    <!-- mysql驱动包 -->   <dependency>    <groupId>mysql</groupId>    <artifactId>mysql-connector-java</artifactId>    <version>5.1.29</version>   </dependency>  </dependencies>  </project>

3、java代码——-src/main/java

目录如下：

（1）User.java

对应数据库中表的字段，放在src/main/java下的包com.lin.domain

package com.lin.domain;  /**  * User映射类  *   * @author linbingwen  * @time 2015.5.15  */ public class User {  private Integer userId;  private String userName;  private String userPassword;  private String userEmail;   public Integer getUserId() {   return userId;  }   public void setUserId(Integer userId) {   this.userId = userId;  }   public String getUserName() {   return userName;  }   public void setUserName(String userName) {   this.userName = userName;  }   public String getUserPassword() {   return userPassword;  }   public void setUserPassword(String userPassword) {   this.userPassword = userPassword;  }   public String getUserEmail() {   return userEmail;  }   public void setUserEmail(String userEmail) {   this.userEmail = userEmail;  }   @Override  public String toString() {   return "User [userId=" + userId + ", userName=" + userName     + ", userPassword=" + userPassword + ", userEmail=" + userEmail     + "]";  }   }

（2）UserDao.java

Dao接口类，用来对应mapper文件。放在src/main/java下的包com.lin.dao,内容如下：

package com.lin.dao;   import com.lin.domain.User;  /**  * 功能概要：User的DAO类  *   * @author linbingwen  * @since 2015年9月28日  */ public interface UserDao {  /**   *    * @author linbingwen   * @since 2015年9月28日   * @param userId   * @return   */  public User selectUserById(Integer userId);  }

（2）UserService.java和UserServiceImpl.java

service接口类和实现类，放在src/main/java下的包com.lin.service,内容如下：

UserService.java

package com.lin.service;  import org.springframework.stereotype.Service;  import com.lin.domain.User;  /**  * 功能概要：UserService接口类  *   * @author linbingwen  * @since  2015年9月28日   */ public interface UserService {  User selectUserById(Integer userId);  }

UserServiceImpl.java

package com.lin.service;  import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Service;  import com.lin.dao.UserDao; import com.lin.domain.User;  /**  * 功能概要：UserService实现类  *   * @author linbingwen  * @since  2015年9月28日   */ @Service public class UserServiceImpl implements UserService{  @Autowired  private UserDao userDao;   public User selectUserById(Integer userId) {   return userDao.selectUserById(userId);     }  }

（4）mapper文件

用来和dao文件对应，放在src/main/java下的com.lin.mapper包下

<?xml version="1.0" encoding="UTF-8"?>   <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"   "http://mybatis.org/dtd/mybatis-3-mapper.dtd"> <mapper namespace="com.lin.dao.UserDao"> <!--设置domain类和数据库中表的字段一一对应，注意数据库字段和domain类中的字段名称不致，此处一定要！-->  <resultMap id="BaseResultMap" type="com.lin.domain.User">   <id column="USER_ID" property="userId" jdbcType="INTEGER" />   <result column="USER_NAME" property="userName" jdbcType="CHAR" />   <result column="USER_PASSWORD" property="userPassword" jdbcType="CHAR" />   <result column="USER_EMAIL" property="userEmail" jdbcType="CHAR" />  </resultMap>  <!-- 查询单条记录 -->  <select id="selectUserById" parameterType="int" resultMap="BaseResultMap">   SELECT * FROM t_user WHERE USER_ID = #{userId}  </select> </mapper>

4、资源配置——-src/main/resources

目录如下：

(1)mybatis配置文件

这里没有什么内容，因为都被放到application.xml中去了,放在src/main/resources下的mybatis文件夹下

mybatis-config.xml内容如下：

<?xml version="1.0" encoding="UTF-8"?>   <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"   "http://mybatis.org/dtd/mybatis-3-config.dtd">   <configuration>     </configuration>

（2）数据源配置jdbc.properties

放在src/main/resources下的propertiesy文件夹下

jdbc_driverClassName=com.mysql.jdbc.Driver jdbc_url=jdbc:mysql://localhost:3306/learning jdbc_username=root jdbc_password=christmas258@

（3）Spring配置

这是最重要的：application.xml内容如下

<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans"  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"  xmlns:aop="http://www.springframework.org/schema/aop"  xsi:schemaLocation="              http://www.springframework.org/schema/beans              http://www.springframework.org/schema/beans/spring-beans-3.0.xsd              http://www.springframework.org/schema/aop              http://www.springframework.org/schema/aop/spring-aop-3.0.xsd            http://www.springframework.org/schema/context              http://www.springframework.org/schema/context/spring-context-3.0.xsd">            <!-- 引入jdbc配置文件 -->        <bean id="propertyConfigurer" class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">         <property name="locations">             <list>                <value>classpath:properties/*.properties</value>                 <!--要是有多个配置文件，只需在这里继续添加即可 -->             </list>         </property>     </bean>             <!-- 配置数据源 -->  <bean id="dataSource"   class="org.springframework.jdbc.datasource.DriverManagerDataSource">   <!-- 不使用properties来配置 -->   <!-- <property name="driverClassName" value="com.mysql.jdbc.Driver" />     <property name="url" value="jdbc:mysql://localhost:3306/learning" />     <property name="username" value="root" />     <property name="password" value="christmas258@" /> -->     <!-- 使用properties来配置 -->   <property name="driverClassName">    <value>${jdbc_driverClassName}</value>   </property>   <property name="url">    <value>${jdbc_url}</value>   </property>   <property name="username">    <value>${jdbc_username}</value>   </property>   <property name="password">    <value>${jdbc_password}</value>   </property>  </bean>   <!-- 自动扫描了所有的XxxxMapper.xml对应的mapper接口文件，这样就不用一个一个手动配置Mpper的映射了，只要Mapper接口类和Mapper映射文件对应起来就可以了。 -->  <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">   <property name="basePackage"    value="com.lin.dao" />  </bean>      <!-- 配置Mybatis的文件 ，mapperLocations配置**Mapper.xml文件位置，configLocation配置mybatis-config文件位置-->  <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">   <property name="dataSource" ref="dataSource" />         <property name="mapperLocations" value="classpath*:com/lin/mapper/**/*.xml"/>     <property name="configLocation" value="classpath:mybatis/mybatis-config.xml" />   <!-- <property name="typeAliasesPackage" value="com.tiantian.ckeditor.model"     /> -->  </bean>   <!-- 自动扫描注解的bean -->  <context:component-scan base-package="com.lin.service" />  </beans>

（4）日志打印log4j.properties

就放在src/main/resources

log4j.rootLogger=DEBUG,Console,Stdout  #Console log4j.appender.Console=org.apache.log4j.ConsoleAppender log4j.appender.Console.layout=org.apache.log4j.PatternLayout log4j.appender.Console.layout.ConversionPattern=%d [%t] %-5p [%c] - %m%n  log4j.logger.java.sql.ResultSet=INFO log4j.logger.org.apache=INFO log4j.logger.java.sql.Connection=DEBUG log4j.logger.java.sql.Statement=DEBUG log4j.logger.java.sql.PreparedStatement=DEBUG   log4j.appender.Stdout = org.apache.log4j.DailyRollingFileAppender   log4j.appender.Stdout.File = E://logs/log.log   log4j.appender.Stdout.Append = true   log4j.appender.Stdout.Threshold = DEBUG    log4j.appender.Stdout.layout = org.apache.log4j.PatternLayout   log4j.appender.Stdout.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss}  [ %t:%r ] - [ %p ]  %m%n

四、单元测试

上面的配置完好，接下来就是测验成功

整个目录 如下：

（1）测试基类

package com.lin.baseTest;  import org.junit.runner.RunWith; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import org.springframework.test.context.ContextConfiguration; import org.springframework.test.context.junit4.AbstractJUnit4SpringContextTests; import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;  /**  * 功能概要：  *   * @author linbingwen  * @since  2015年9月28日   */ //指定bean注入的配置文件 @ContextConfiguration(locations = { "classpath:application.xml" }) //使用标准的JUnit @RunWith注释来告诉JUnit使用Spring TestRunner @RunWith(SpringJUnit4ClassRunner.class) public abstract class SpringTestCase extends AbstractJUnit4SpringContextTests{  protected Logger logger = LoggerFactory.getLogger(getClass()); }

（2）测试类

package com.lin.service;  import org.apache.log4j.Logger; import org.junit.Test; import org.springframework.beans.factory.annotation.Autowired;  import com.lin.baseTest.SpringTestCase; import com.lin.domain.User;  /**  * 功能概要：UserService单元测试  *   * @author linbingwen  * @since  2015年9月28日   */ public class UserServiceTest extends SpringTestCase {  @Autowired  private UserService userService;  Logger logger = Logger.getLogger(UserServiceTest.class);    @Test  public void selectUserByIdTest(){   User user = userService.selectUserById(10);         logger.debug("查找结果" + user);  }    }

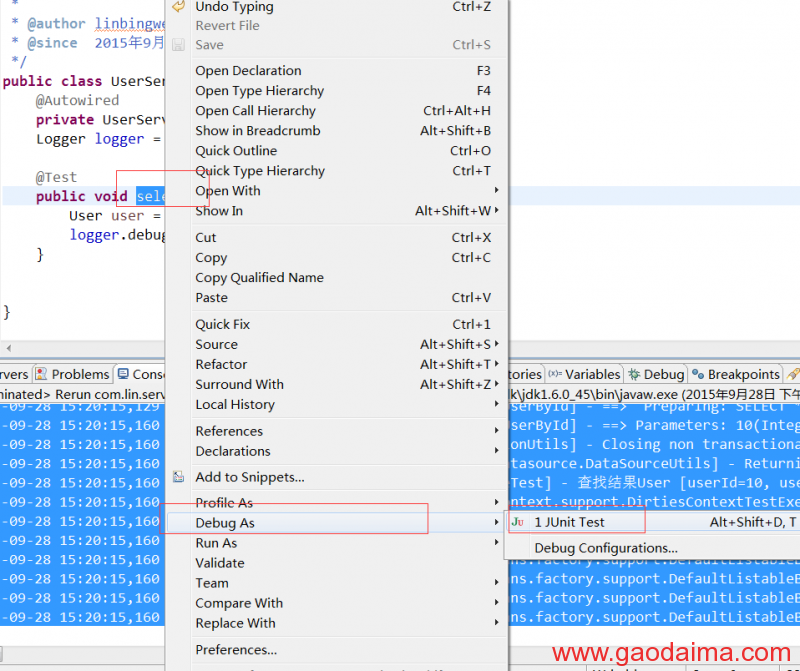

选中selectUserByIdTest，然后右键如下运行

2015-09-28 15:20:15,129 [main] DEBUG [com.lin.dao.UserDao.selectUserById] - ==>  Preparing: SELECT * FROM t_user WHERE USER_ID = ?  2015-09-28 15:20:15,160 [main] DEBUG [com.lin.dao.UserDao.selectUserById] - ==> Parameters: 10(Integer) 2015-09-28 15:20:15,160 [main] DEBUG [org.mybatis.spring.SqlSessionUtils] - Closing non transactional SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@6b64bff9] 2015-09-28 15:20:15,160 [main] DEBUG [org.springframework.jdbc.datasource.DataSourceUtils] - Returning JDBC Connection to DataSource 2015-09-28 15:20:15,160 [main] DEBUG [com.lin.service.UserServiceTest] - 查找结果User [userId=10, userName=apple, userPassword=uih6, [email protected]]

程序成功运行，并且结果正确！

到这里配置好spring+mybatis+mysql!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

这里开始添加spirngMVC，并转换maven工程为web项目

接上面的工程接着说，此时要加spingMVC之前，工程得再稍微转换下

此时webapp下的结果还没有显示出来，因为此时我们还没有配置此的项目为web项目
